Wilwood - Rear Disc Brake Conversion with Parking Brake, GM 10-12 Bolt, Rear Mount Calipers
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance
Kit includes:
D154 Calipers
Non Staggered Rear Mounted
Ultralite HP 32 & Hat Rotors 12.19" vented
Rotor Hats

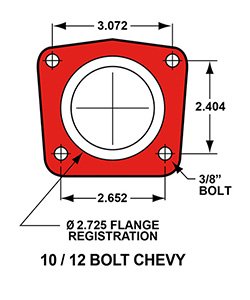

Fits 10-12 Bolt
Axle offset is 2.75-2.81"
Hardware
Notes:
Min Wheel Diameter - 16"
Lug Patterns - 5 x 4.50" / 4.75" / 5.00"
Rear mounted brake calipers
Non staggered
